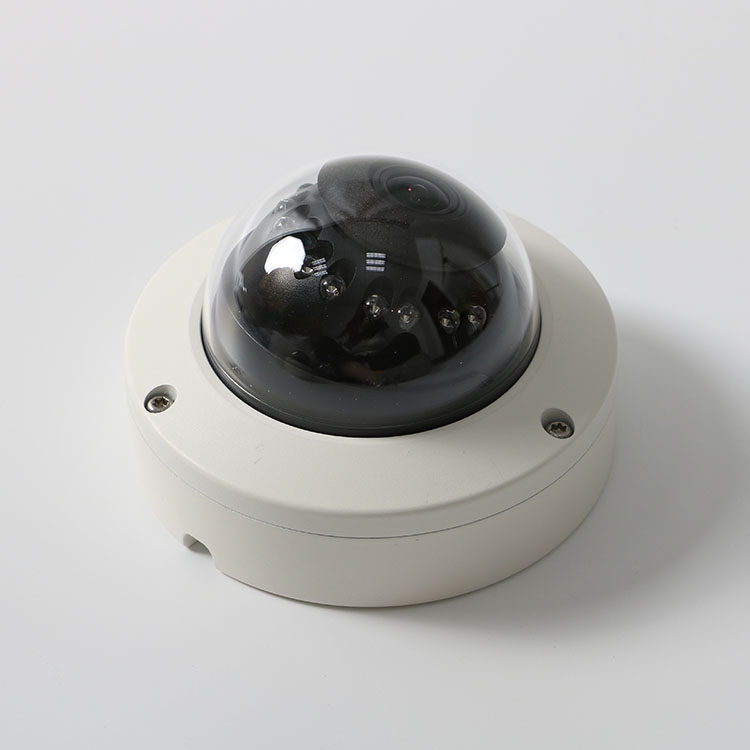

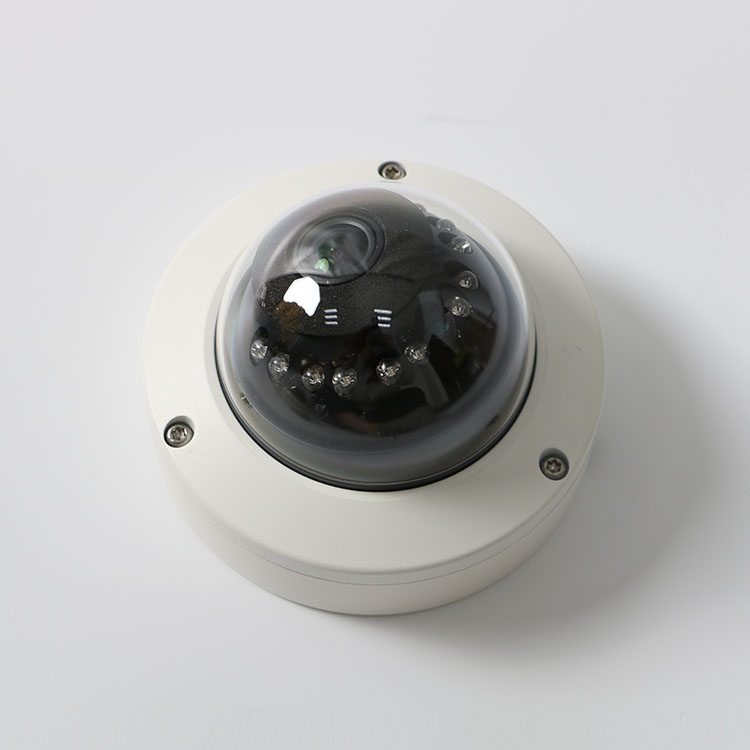

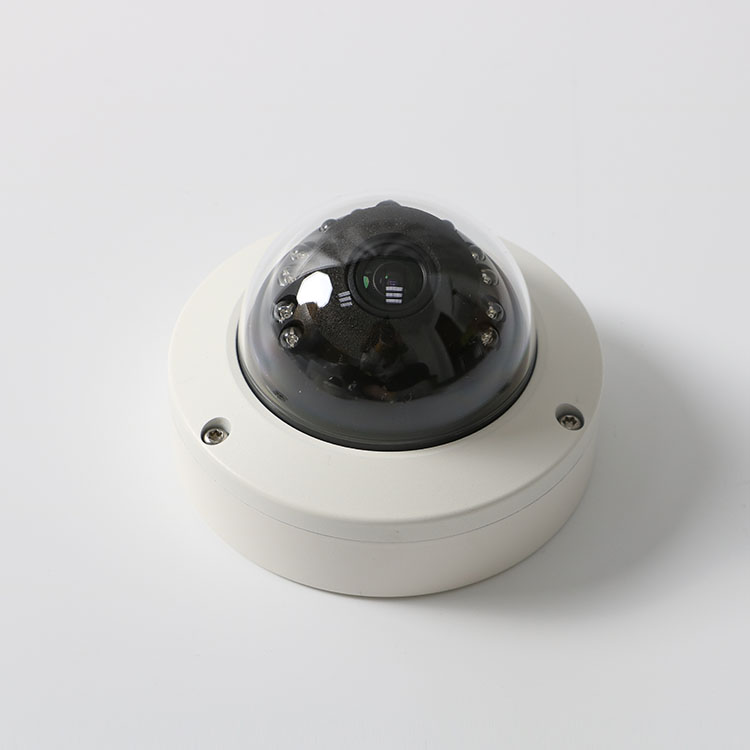

Caméra IP grand angle Fish-eye grand angle intérieure avec POE Onvif
Description du produit
\ n
\ n \ n
\ n Spécifications \ n Camera | |
Image Sensor |
1/3” 4.0Megapixel progressive scan CMOS |
Effective Pixels |
2592(H)x1520(V) |
RAM/ROM |
512MB/32MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
Minimum Illumination |
0.01Lux/F1.6 ( Color,1/3s,30IRE) 0Lux/F1.6 (IR on) |
S/N Ratio |
Less than 50dB |
IR Distance |
Distance up to 20m |
IR On/Off Control |
Auto/Manual |
IR LEDs |
12 |

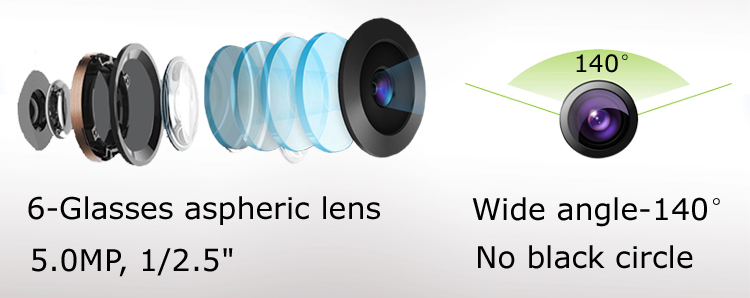

Lens | |
Lens Type |
fisheye |
Mount Type |
Board-in |
Focal Length |
2.1mm fixed |
Max. Aperture |
F1.6 |
Angle of View |
140° |
Optical Zoom |
N/A |
Focus Control |
Fixed |
Video | |
Compression |
H.264/MJPEG(sub stream) |
Streaming Capability |
DUAL Streams |
Resolution |
4.0M(2592*1520)/3.0M(2048*1536)/1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720) |
Frame Rate |
Main Stream: 4.0MP(1~25fps) |
Sub Stream: 720P (1 ~ 25fps) | |
| |
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 24~ 9472Kbps H.265: 14~ 5632Kbps |
Day/Night |
Auto(ICR) / Color / B/W |
BLC Mode |
BLC / HLC / WDR(120dB) |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detection |
Off / On (4 Zone, Rectangle) |
Region of Interest |
Off / On (4 Zone) |
Electronic Image Stabilization (EIS) |
N/A |
Smart IR |
Support |
Defog |
N/A |
Flip |
0°/90°/180°/270° |
Mirror |
Off / On |
Privacy Masking |
Off / On (4 Area, Rectangle) |
Audio | |
Compression |
G.711a (optional) |
Network | |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S NMP;TLS |
Interoperability |
ONVIF Profile |
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software |
PC Client |
Smart Phone |
IOS, Android |
Interface | |
Video Interface |
1 port(RJ45) |
Audio Interface |
1/1 channel In/Out |
RS485 |
N/A |
Electrical | |
Power Supply |
DC12V |
Environmental | |
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Storage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Construction | |
Casing |
Metal |
Dimensions |
Φ120mm*62mm |
 |
 |
 |
 |
|
