Aucun appareil photo panoramique Black Edge avec prise en charge de l'appareil photo à objectif grand angle NVR 2MP à 5MP

Model No

 IP9S/20

 IP9S/40

  IP9S/50

DSP

Hisilicon

Hisilicon

Hisilicon

Sensor

1/2.9”SONY CMOS

1/3”OV CMOS

1/2.7”OV CMOS

Min illumination

Color 0.1Lux-F1.2;

B&W0.01Lux-F1.2;

Color 0.6Lux-F1.2;

B&W0.08Lux-F1.2;

Color 0.1Lux-F1.2;

B&W0.01Lux-F1.2;

SNR

>50db(AGC OFF)

WDR

DWDR: >80db

audio/talk input

1CH audio MIC input/line input (optional)

audio output

1CH line output (optional)

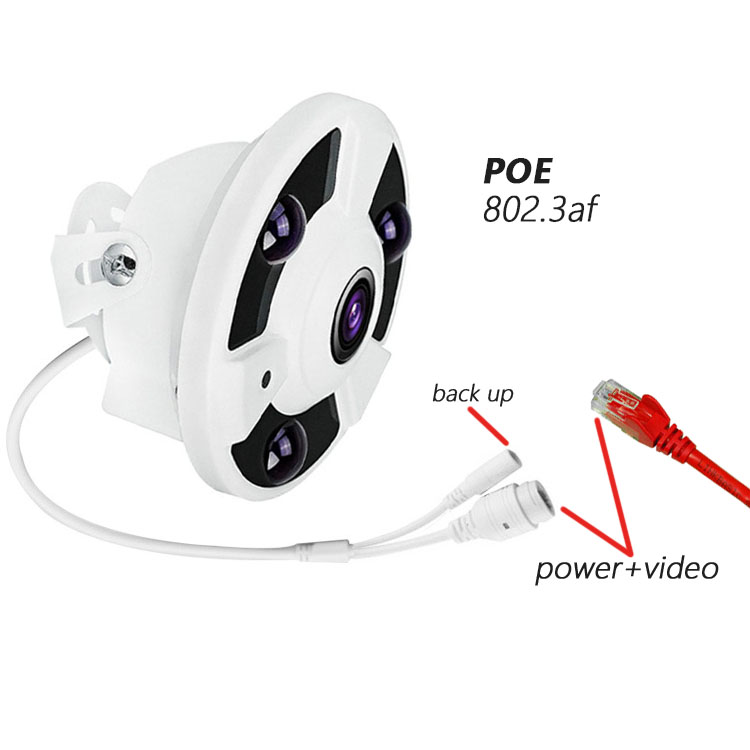

POE

POE 48V (optional)

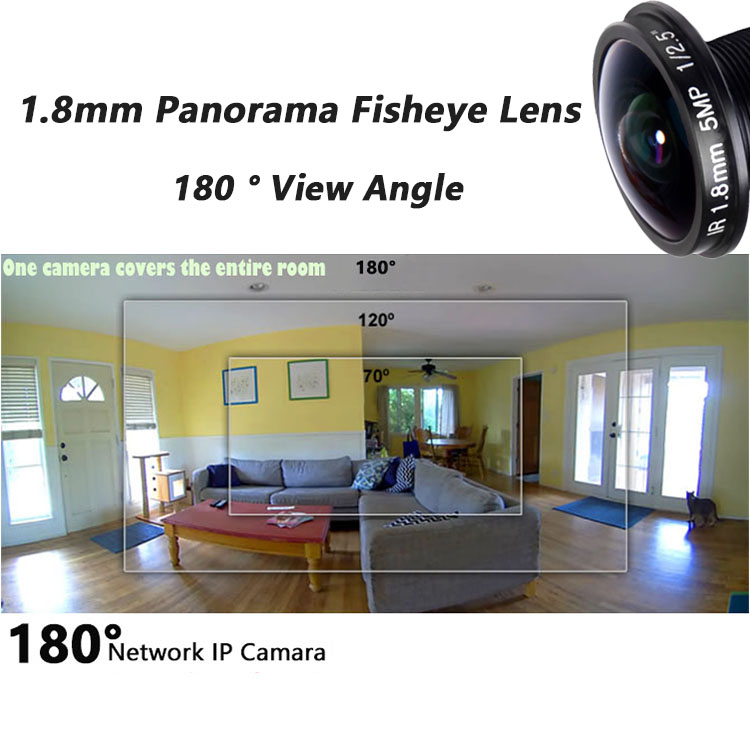

Lens

1.8mm lens

Lens Type

M12

Focus Control

manual

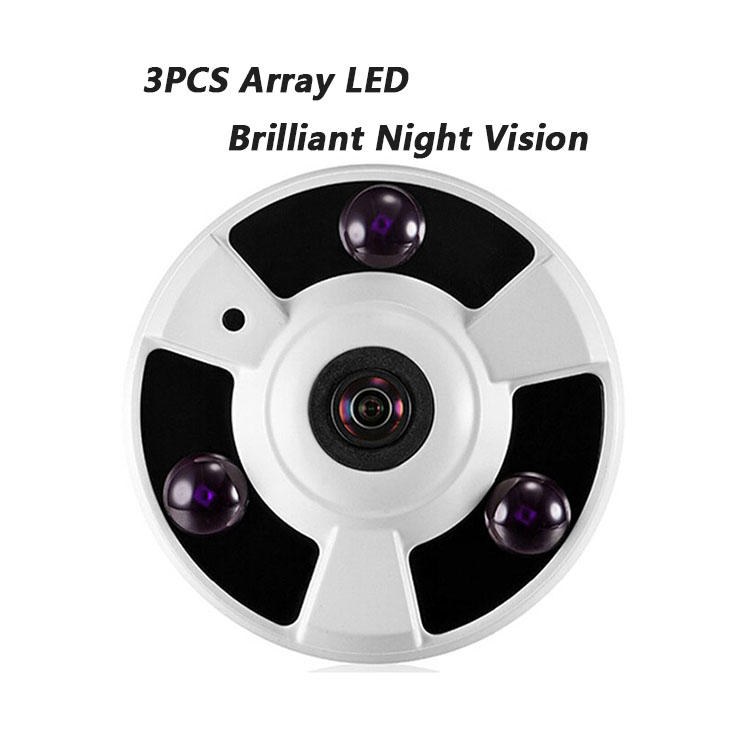

IR Led

 3PCS Array Led

IR control

 Auto/Manual

Coding format

H.265+ ;H.265 Main Profile ; H.264 Baseline,Main Profile,High Profile

MJPEG coding

Main steaming

1920*1080,

1-25(30)frame/s

2592*1520,

1-15 frame/s

2592*1944/2560*1920 1-15fps

1280*720,

1-25(30)frame/s

2048*1520,1-25(30) frame/s

1920*1080,1-25(30) frame/s

2592*1520,1-25(30) frame/s

1920*1080,1-25(30) frame/s

Sub-steaming

704*576,1-25(30)frame/s 640*480,1-25(30)frame/s

704*576,1-25(30) frame/s 640*480,1-25(30) frame/s

704*576,1-25(30) frame/s 640*480,1-25(30) frame/s

640*352,1-25(30)frame/s 320*240,1-25(30)frame/s

640*352,1-25(30) frame/s 320*240,1-25(30) frame/s

640*352,1-25(30) frame/s 320*240,1-25(30) frame/s

video compression rate

32Kbps-16Mbps able to continue adjusting,support CBR/VBR

32Kbps-16Mbps able to continue adjusting,support CBR/VBR

32Kbps-16Mbps able to continue adjusting,support CBR/VBR

Subtitles overlay

support channel name, date time, streaming info overlay,overlay position able to adjust

Data Storage

video ,image file

Storage mechanism

Manual, auto(circulation, time, alarming switch volume,motion detection)

Alarm Data Transmission

FTP,E-mail,browser, manage software

Support Protocol

TCP/IP,UDP,RTP,RTSP,TRCP,HTTP,DNS,DDNS,DHCP,FTP,NTP,PPPOE,SMTP,UPNP

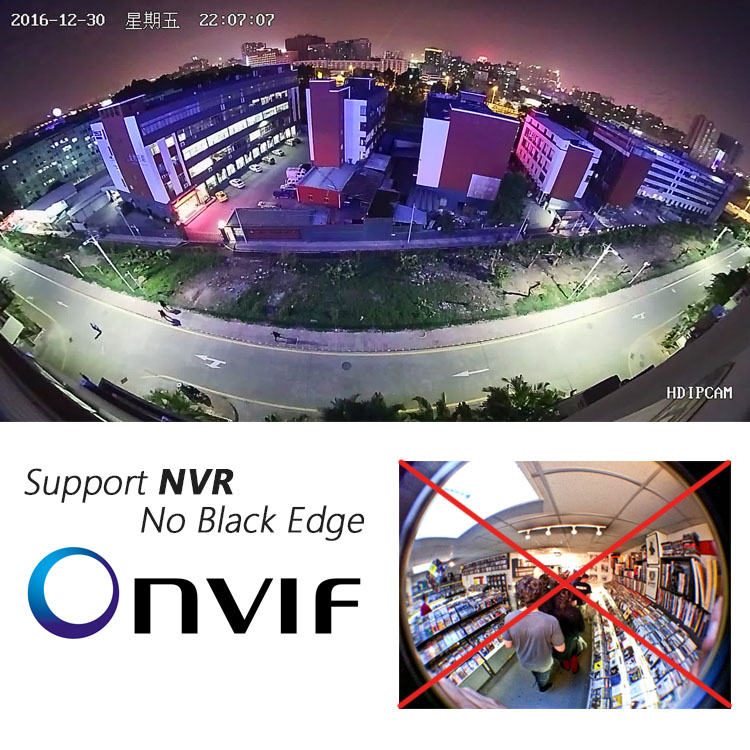

ONVIF Protocol

Standard onvif 2.4 Protocol

Client browse

Support IE6.0 and above(embedded Web Server in device)browse by browser,support 10users to access simultaneously(MAX)

Mobile client

Support iPhone,iPad,Android

Power supply

DC12V/POE 48V

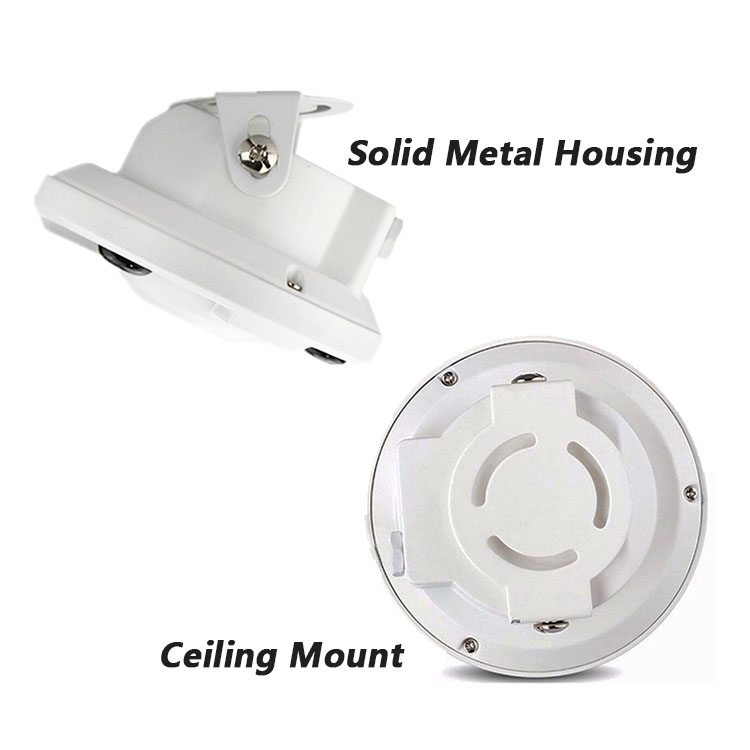

Material

Aluminium

Heater

N/A

Lightning proof

N/A

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Water Resistance

IP65
